Earth Leakage Relay

Description

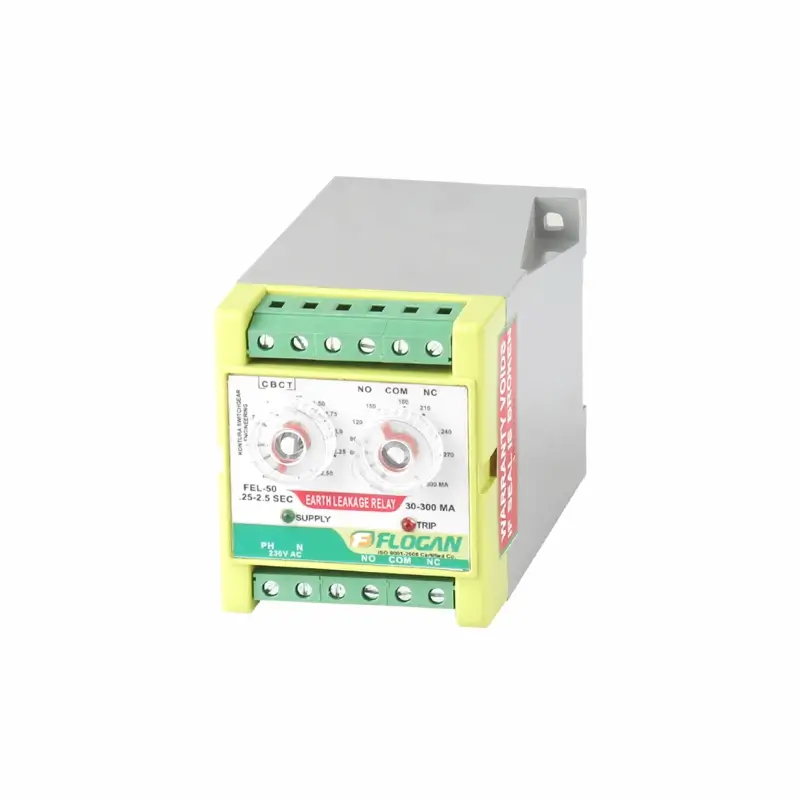

Earth Leakage Relay – Flogan Leakage Protection Device

The Flogan Earth Leakage Relay is an advanced protection device designed to detect leakage current flowing through electrical systems and protect equipment such as transformers, feeders, generators, and industrial machines.

The relay monitors leakage current using current transformer (CT) connections, converting the sensed current into a signal that is digitally compared with preset reference levels. When leakage exceeds the defined limit, the relay activates and triggers a trip after a preset time delay.

It features adjustable time delay (0–10 seconds) and includes LED indication for fault conditions. The device also provides two sets of changeover contacts for breaker tripping and control applications.

Designed to suppress transient conditions, the relay ensures stable and accurate operation in industrial environments.

✅ Available Variants

Model: FEL-50 — Suitable for 230V AC
Model: FEL-72 — Suitable for 110V / 440V AC

✅ Technical Details

Product Type: Earth Leakage Relay
Brand: Flogan
Model No.: FEL-50 / FEL-72
Voltage Support: 230V AC / 110V AC / 440V AC
Leakage Current Range:

• 30–300 mA (Automatic)
• 50–500 mA (Automatic)

Time Setting: 0–10 Seconds (Adjustable)
Monitoring Type: CT-Based Leakage Current Detection
Output Type: Two Sets of Changeover Contacts
Indication: LED Trip Indication
HSN Code: 8536
Application: Leakage Current Protection Systems

📦 Packing Details

Standard Packing: 20 Units per Box

🔥 Ideal Applications

• Leakage Current Protection Systems
• Industrial Electrical Panels
• Transformer & Generator Protection
• Power Distribution Systems
• Safety & Fault Protection Circuits
