Busbar Chamber (32A–680A)

Description

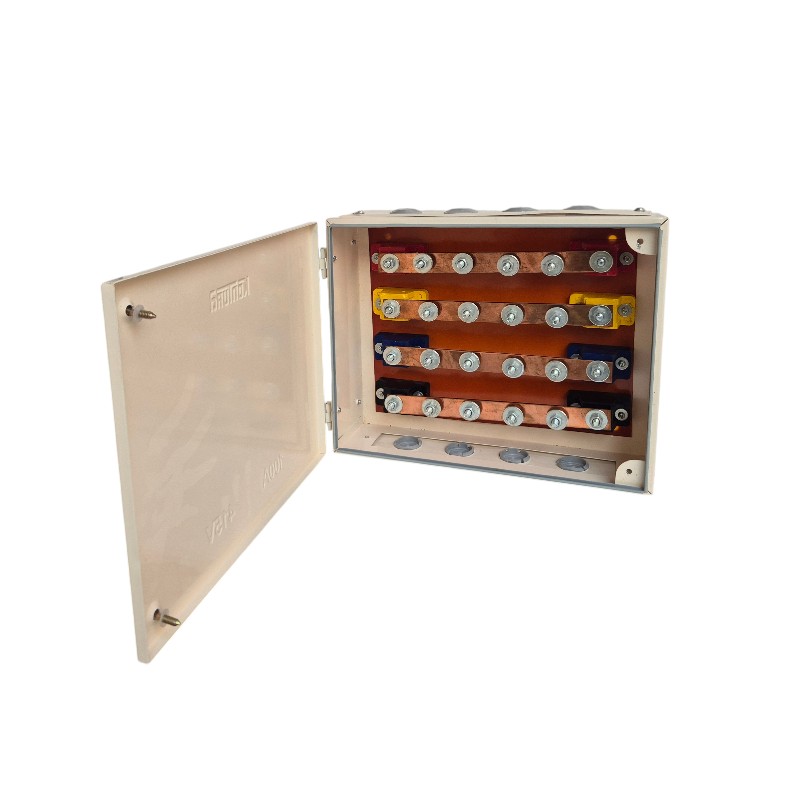

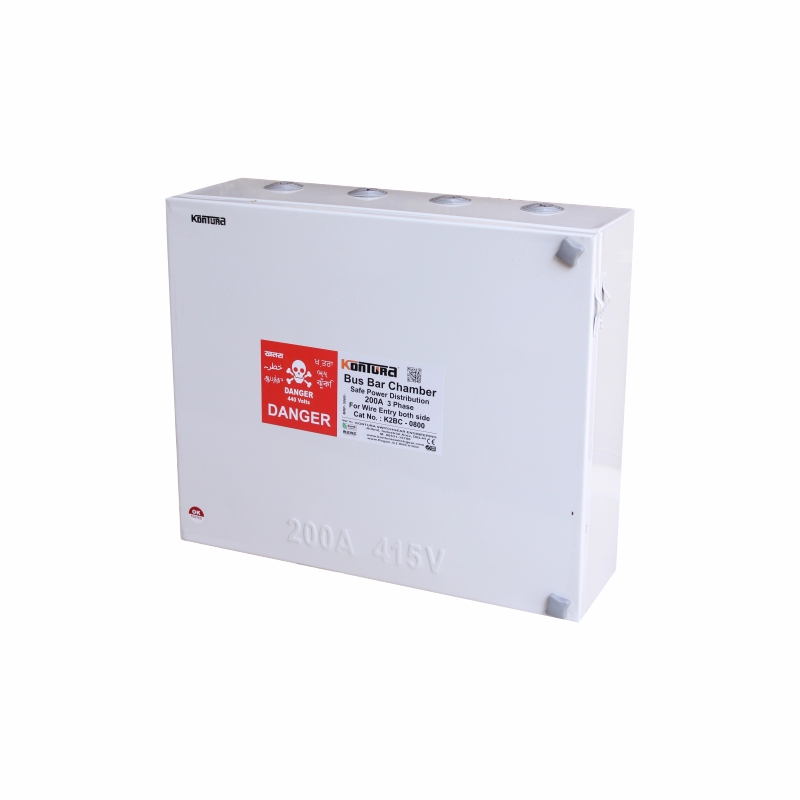

Busbar Chamber – Safe & Reliable Power Distribution

The Busbar Chamber is engineered for secure and organized power distribution in commercial and industrial electrical systems. Manufactured from heavy-duty sheet metal and finished with durable powder coating, it ensures high strength, corrosion resistance, and long service life.

Equipped with tin-plated copper strips ranging from 32A to 680A capacity, this chamber provides efficient current handling and reduced power loss. Designed for three-phase systems with four-wire entry on both sides, it offers flexible installation and easy maintenance.

Ideal for factories, commercial complexes, panel boards, and industrial applications requiring high-load power distribution.

Available Ratings & Box Sizes

• 32A – 250 x 200 x 100 mm

• 63A – 300 x 230 x 100 mm

• 100A – 380 x 300 x 100 mm

• 200A – 510 x 380 x 130 mm

• 300A – 510 x 380 x 130 mm

• 400A – 560 x 460 x 150 mm

• 550A – 660 x 560 x 180 mm

• 680A – 660 x 560 x 180 mm

Technical Details

• Product Type: Busbar Chamber

• Material: Heavy Sheet Metal

• Finish: Powder Coated

• Conductor: Tin Plated Copper Strips

• System Type: Three Phase

• Wire Entry: Both Sides

• HSN Code: 8536

• Application: Industrial & Commercial Power Distribution
